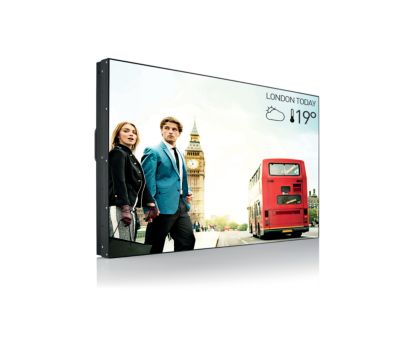

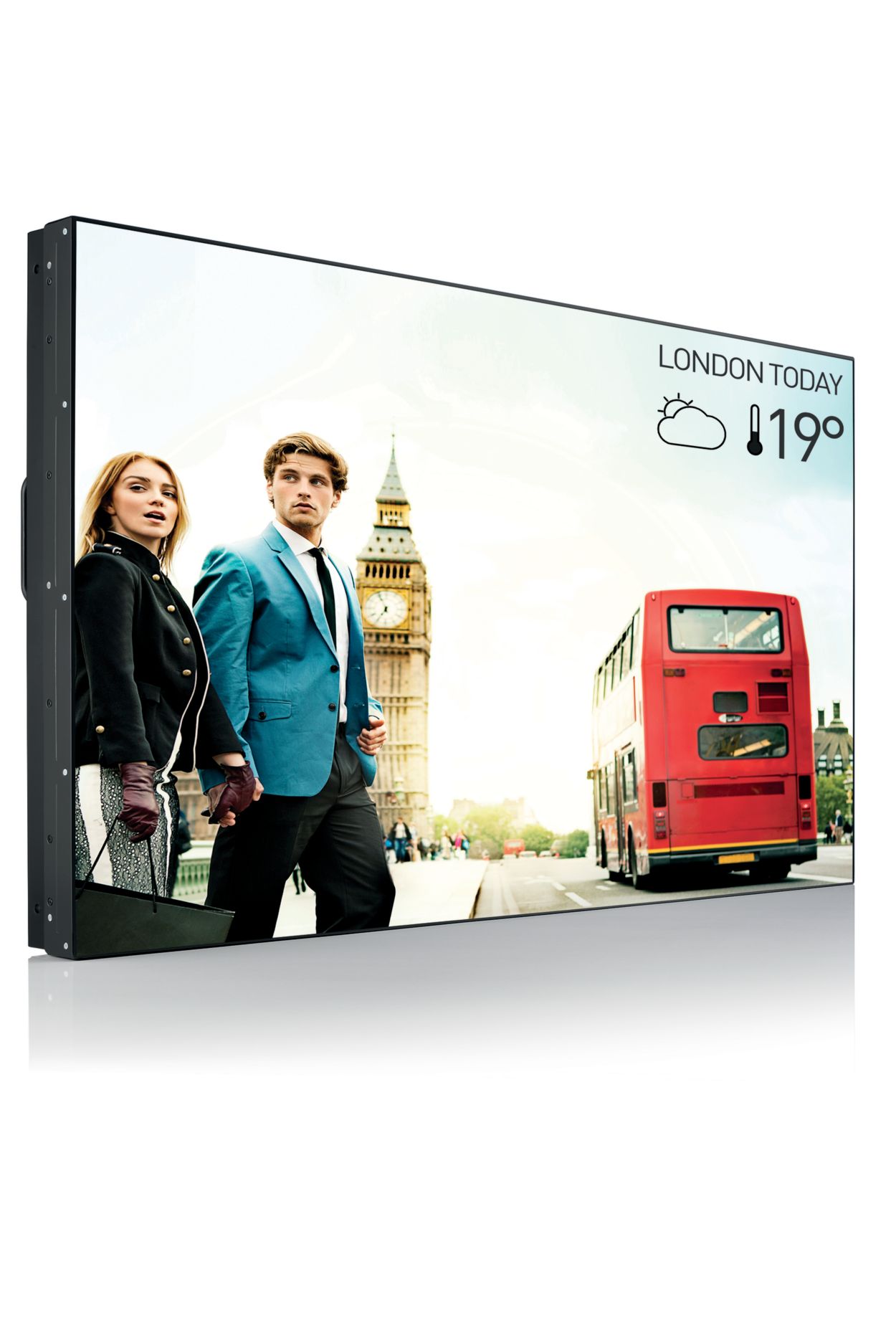

Professional Monitor Video Wall Display

55BDL4007X/00

Go big

Command attention with an X-Line professional videowall display. Crisp contrast and slim bezels enable clear, distraction-free imaging. Whether you’re running an airport or hosting a conference

Unfortunately this product is no longer available

Professional Monitor Video Wall Display

Similar products

See all LED

Go big

Versatile videowall display.

  • 55"
  • Direct LED Backlight
  • Full HD
  • 700cd/m²
Operate, monitor and maintain with CMND & Control

Operate, monitor and maintain with CMND & Control

Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.

CMND & Create. Develop and launch your own content

CMND & Create. Develop and launch your own content

Take control of your content with CMND & Create. A drag-and-drop interface makes it simple to publish your own content-whether it's a daily specials board or branded corporate information. Preloaded templates and integrated widgets ensure your stills, text, and video will be up and running in no time.

FailOver ensures content is always playing

FailOver ensures content is always playing

From waiting room to meeting room, never show a blank screen. FailOver lets your Philips Professional Display switch automatically between primary and secondary inputs ensuring content keeps playing even if the primary source goes down. Simply set a list of alternate inputs to be sure your business is always on.

OPS slot allows for PC embedding without cabling

OPS slot allows for PC embedding without cabling

Integrate a full-power PC or Android-powered CRD50 module directly into your Philips Professional Display. The OPS slot contains all the connections you need to run your slot-in solution, including a power supply.

Remote system management through CMND

Take control of your Philips Professional Display network. CMND lets you manage, update, maintain, and play via one easy-to-use interface. From installation to daily operation.

Add Android processing power with an optional CRD50 module

Embed an Android System-on-Chip (SoC) in your Philips Professional Display. The optional CRD50 module is an OPS device that enables Android processing power without the need for cables. Simply slide into the OPS slot, which contains all the connections needed to run the module (including power supply).

Tiling mode. Create tiled 4K videowalls of any size

Connect two or more Philips professional displays to create a tiled videowall-without the need for external devices. A single player takes care of content, whether you have four screens or 40. 4K content is fully supported, and if you're showing that content on four screens you get the best possible dot-by-dot resolution.

Technical Specifications

  • Picture/Display

    Diagonal screen size (metric)
    138.7  cm
    Diagonal screen size (inch)
    54.6  inch
    Aspect ratio
    16:9
    Panel resolution
    1920x1080p
    Pixel pitch
    0.63 x 0.63 mm
    Optimum resolution
    1920 x 1080 @ 60 Hz
    Brightness
    700  cd/m²
    Display colors
    1.07 B
    Contrast ratio (typical)
    1200:1
    Dynamic contrast ratio
    500,000:1
    Response time (typical)
    8  ms
    Viewing angle (horizontal)
    178  degree
    Viewing angle (vertical)
    178  degree
    Haze
    28 %
  • Connectivity

    Audio output
    • External speaker connector
    • 3.5 mm Mini Jack (x1)
    Video input
    • Composite (Share component Y)
    • Component BNC (x3)
    • Display Port1.2 (x1)
    • DVI-D (x1)
    • HDMI 1.4 (x2)
    • VGA (Analog D-Sub) (x1)
    • USB 2.0 ( x1)
    Audio input
    • 3.5 mm mini jack (x1)
    • Audio Left / Right (RCA) x 1
    Other connections
    • OPS
    • Thermal sensor
    Video output
    • DVI-I (x1)
    • DisplayPort 1.2 (x1)
    External control
    • RS232C (in/out) 2.5 mm jack
    • IR (in/out) 3.5 mm jack
    • RJ45 x2
  • Convenience

    Placement
    • Landscape (24/7)
    • Portrait (24/7)
    Tiled Matrix
    Up to 10 x 10
    Screen saving functions
    Pixel Shift, Low Bright
    Signal loop through
    • DisplayPort
    • RS232
    • DVI Loopthrough
    • IR Loopthrough
    Ease of installation
    • Carrying Handles
    • Smart Insert
    Energy saving functions
    Smart Power
    Network controllable
    • RS232
    • RJ45
    RJ45 hub
    available
  • Sound

    Built-in speakers
    2 x 10W (RMS)
  • Power

    Consumption (Typical)
    165  W
    Consumption (Max)
    360 W
    Standby power consumption
    <0.5W
  • Supported Display Resolution

    Computer formats
    • 640 x 480, 60, 67, 72, 75Hz
    • 800 x 600, 56, 60, 72, 75Hz
    • 1024 x 768, 60Hz
    • 1280 x 768, 60Hz
    • 1280 x 800, 60Hz
    • 1280 x 1024, 60Hz
    • 1360 x 768, 60Hz
    • 1366 x 768, 60Hz
    • 1440 x 900, 60Hz
    • 1600 x 1200, 60Hz
    • 1920 x 1080, 60Hz
    • 1920 x 1200, 60Hz
    • 3840 x 2160, 30Hz
    Video formats
    • 480i, 60Hz
    • 480p, 60Hz
    • 576p, 50Hz
    • 576i, 50Hz
    • 720p, 50, 60Hz
    • 1080i, 50, 60Hz
    • 1080p, 50, 60Hz
    • 3840 x 2160, 30Hz
  • Dimensions

    Set Width
    1211.4  mm
    Product weight
    24.9  kg
    Set Height
    682.2  mm
    Set Depth
    97.3(D@Handle) / 98.4 (D@Wall mount)  mm
    Set Width (inch)
    47.69  inch
    Set Height (inch)
    26.86  inch
    Wall Mount
    400mm x 400mm, M6
    Set Depth (inch)
    3.83 (D@Handle) / 3.87 (D@Wall mount)  inch
    Bezel width
    0.9 mm
  • Operating conditions

    Altitude
    0 ~ 3000 m
    Temperature range (operation)
    0 ~ 40  °C
    MTBF
    50,000  hour(s)
    Temperature range (storage)
    -20 ~ 60  °C
    Humidity range (operation)[RH]
    20 - 80% (without condensation)
    Humidity range (storage) [RH]
    5 - 90% (without condensation)
  • Multimedia Applications

    USB Playback Video
    • ISM
    • M2TS
    • M4V
    • Manifest
    • MK3D
    • MKV
    • MP4
    • MPEG
    • MPG
    • MPD
    • MT2
    • MTS
    • TS
    • VOB
    USB Playback Picture
    • BMP
    • GIF
    • JPEG
    • JPG
    • PNG
    USB Playback Audio
    • AAC
    • AIF
    • AIFF
    • ASF
    • M3U
    • M4A
    • MP3
    • MP4
    • PLS
    • WAV
    • WMA
  • Accessories

    Included Accessories
    • AC Switch Cover
    • Gap pad x3
    • Kit-1 (x1)
    • Kit-2 (x2)
    • Power cable ( 3m )
    • Quick start guide (x1)
    • Remote control & AAA batteries
    • RS232 Cable ( 3m )
    • RS232 daisy-chain cable
    • Wire Clamper (x3)
    • HDMI cable (1.8 m) (x1)
    Stand
    BM05462 / BM05922 (Optional)
  • Miscellaneous

    On-Screen Display Languages
    • Arabic
    • English
    • French
    • German
    • Italian
    • Japanese
    • Polish
    • Russian
    • Spanish
    • Simplified Chinese
    • Turkish
    • Traditional Chinese
    Warranty
    3 years warranty
    Regulatory approvals
    • FCC, Class A
    • RoHS
    • CB
    • BSMI
    • PSB
    • CE
    • CU
    • ETL
    • CCC
    • CECP
