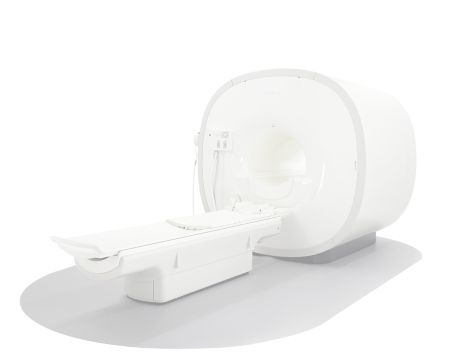

Multiva 1.5T

Specifications

Magnet

Magnet

Magnet weight	2900 kg
Bore design	60 cm
Maximum FOV	53 cm
Ultra compact, Zero Boil off magnet	Yes

RF receive

RF receive

Number of channels	16
Channel bandwidth	3 MHz per channel
Sampling	Direct Digital Sampling (DDS)
Preamplifiers	All RF coils include built in dedicated low noise preamplifiers for optimal signal-to-noise

Galaxy gradients: Performance

Galaxy gradients: Performance

Max Amplitude**	33 mT/m
Effective	57 mT/m 208 mT/m/ms mT/m
Max slew rate**	120 mT/m/ms

RF transmit

RF transmit

Output power	18 kW
Amplitude resolution	16 bits
Tuning	Per patient rapid automatic power and frequency optimization

Resolution parameters

Resolution parameters

Max scan matrix	1024 (2048 optional)
Max. number of slices	1024

Patient environment: Patient aperture

Patient environment: Patient aperture

Length	60 cm
Bore design	60 cm
Patient aperture flare	119 cm (horizontally)
Wireless patient physiological synchronization	Yes
Various acoustic noise reduction solutions	Yes
Patient transport system (optional)	Dockable patient trolley (optional)
Weight capacity	250 kg (550 pounds)
Patient support working height	89 cm (35 inches)
Patient support minimum height	52 cm (20.5 inches)

SmartAssist Efficiency Assistance

SmartAssist Efficiency Assistance

SmartSelect****	Yes
SmartExam (optional)	Yes
SmartLine (package dependent)	Yes
SmartLink (package dependent)	Yes

FlexStream workflow

FlexStream workflow

Total Spine studies***	Zero coil handling
Brain, NV, Body, MSK studies	One ultra-light anterior coil
Whole body exams***	Zero coil handling

Site planning: Power consumption

Site planning: Power consumption

Standby	4.6 kW
Ready	7.4 kW
Scanning*****	21.5 kW
Peak	27 kW
Minimum floor space	19.5 m2 (210 sq.ft.)
