- Multi-modality platform
-
Multi-modality platform
Philips provides choice of IVUS modalities and is the only company to offer digital and rotational devices for a variety of medical practices and divisions. - 45 MHz-frequency imaging
-
45 MHz-frequency imaging
A 45 MHz frequency produces crisp, sharp imaging for dependable interpretation and assessment of vessel morphology. - Low profile, 5F guide compatibility
-
Low profile, 5F guide compatibility
Refinity fits through all 5F guide catheters and is radial access appropriate. - Exceptional deliverability
-
Cross challenging lesions with ease
Refinity is designed to meet the needs of your most complex PCI cases. • Large 0.026 inch Asahi Intecc drive cable for enhanced pushability • Smooth proximal to midshaft transition • GlyDx hydrophilic coating for enhanced pushability and trackability • Soft and flexible tip facilitates distal access
Multi-modality platform
Multi-modality platform
Multi-modality platform
45 MHz-frequency imaging
45 MHz-frequency imaging
45 MHz-frequency imaging
Low profile, 5F guide compatibility
Low profile, 5F guide compatibility
Low profile, 5F guide compatibility
Cross challenging lesions with ease
Cross challenging lesions with ease
Cross challenging lesions with ease
- Multi-modality platform
- 45 MHz-frequency imaging
- Low profile, 5F guide compatibility
- Exceptional deliverability
- Multi-modality platform
-
Multi-modality platform
Philips provides choice of IVUS modalities and is the only company to offer digital and rotational devices for a variety of medical practices and divisions. - 45 MHz-frequency imaging
-
45 MHz-frequency imaging
A 45 MHz frequency produces crisp, sharp imaging for dependable interpretation and assessment of vessel morphology. - Low profile, 5F guide compatibility
-
Low profile, 5F guide compatibility
Refinity fits through all 5F guide catheters and is radial access appropriate. - Exceptional deliverability
-
Cross challenging lesions with ease
Refinity is designed to meet the needs of your most complex PCI cases. • Large 0.026 inch Asahi Intecc drive cable for enhanced pushability • Smooth proximal to midshaft transition • GlyDx hydrophilic coating for enhanced pushability and trackability • Soft and flexible tip facilitates distal access
Multi-modality platform
Multi-modality platform
Multi-modality platform
45 MHz-frequency imaging
45 MHz-frequency imaging
45 MHz-frequency imaging
Low profile, 5F guide compatibility
Low profile, 5F guide compatibility
Low profile, 5F guide compatibility
Cross challenging lesions with ease
Cross challenging lesions with ease
Cross challenging lesions with ease
Specifications
- Catheter size specs
-
Catheter size specs Compatible guide catheter - 5 F (ID ≥ 0.056")
Compatible guidewire - 0.014”
Outer shaft diameter - 3.0 F
Scanner diameter - 14 mm
Working length - 135 mm
Tip-to-tranducer length - 20.5 mm
Ordering information - Part # 89900
-
- Catheter size specs
-
Catheter size specs Compatible guide catheter - 5 F (ID ≥ 0.056")
Compatible guidewire - 0.014”
-
- Catheter size specs
-
Catheter size specs Compatible guide catheter - 5 F (ID ≥ 0.056")
Compatible guidewire - 0.014”
Outer shaft diameter - 3.0 F
Scanner diameter - 14 mm
Working length - 135 mm
Tip-to-tranducer length - 20.5 mm
Ordering information - Part # 89900
-
Related products
Alternative products
-
Eagle Eye Platinum
- #1 choice of physicians for intravascular imaging (in the US).*
- GlyDx hydrophilic coating for increased lubricity
- A long, rapid exchange lumen for improved pushability
- Three radiopaque markers
- Compatibility with SyncVision for co-registration with angiography
View product
-
Core
- Choice of FFR, iFR, and IVUS modalities on a single integrated platform
- Delivers convenience in your workflow with true integration
- Always on and ready for use when you need it
View product
-
Core Mobile
- Choice of FFR, iFR, and IVUS modalities on a single mobile platform
- Delivers convenience by offering flexibility to service multiple rooms
- Offers an intuitive interface for optimal ease of use
View product
-
Eagle Eye Platinum
The Eagle Eye Platinum digital IVUS catheter is the #1 choice of physicians for intravascular imaging (in the US).* As a unique plug-and-play intravascular imaging catheter it is designed for ease of use and deliverability. Features include a soft tapered tip, GlyDx hydrophilic coating for increased lubricity, a long, rapid exchange lumen for improved pushability, three radiopaque markers, and compatibility with SyncVision for co-registration with angiography.
View product
-
Core
The Core precision guided therapy systems offer the choice of imaging and physiology on a single integrated platform.¹ Core helps provide clarity in your approach, confidence in your decisions, and convenience in your diagnostic and interventional workflows.
View product
-
Core Mobile
Core Mobile is designed to power the future of precision guided therapy and offers the choice of imaging and physiology on a single mobile platform.¹ Core Mobile also provides clarity in your approach and confidence in your results by offering additional information during the diagnostic phase, assisting in intervention decisions.
View product

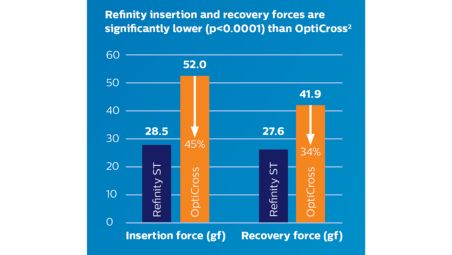

- Data on file at Philips. Bench testing was conducted with three rotational IVUS catheters: Refinity, Revolution, Opticross through a tortuous model.
